G-6040R Super Heavy Duty Automated Industrial Sewing Machine

G-6040R Super Heavy Duty Automated Industrial Sewing Machine

The G-6040R Super Heavy Duty Automated Industrial Sewing Machine is designed to handle the most demanding sewing applications. With a large sewing range of 60cm x 40cm and the capability to sew super heavy materials, it is perfect for industries that require precision and power. Equipped with a 750W direct-drive servo motor and a 6-inch touchscreen LCD for pattern programming, this machine ensures smooth and efficient sewing operations.

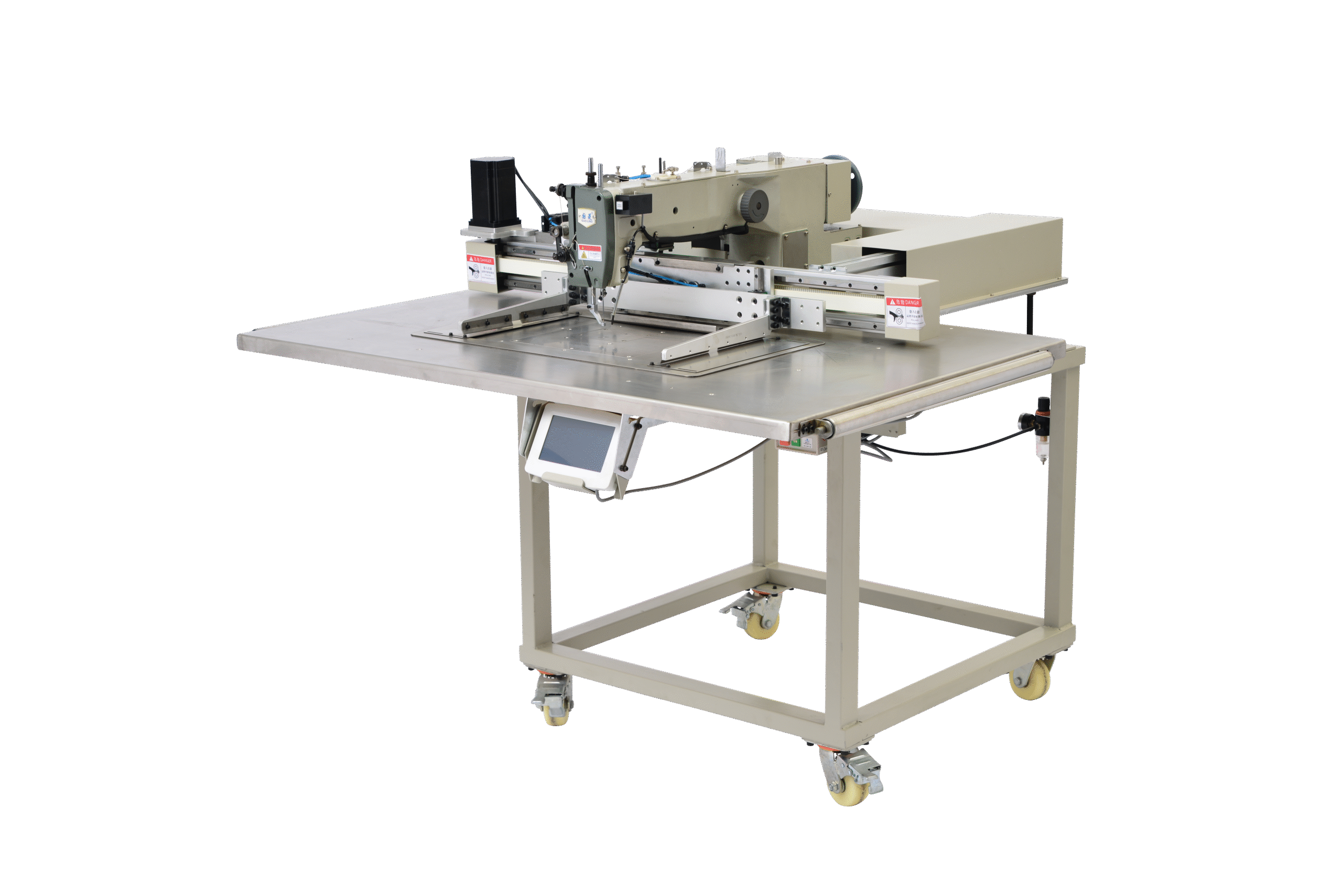

G-6040R Machine Image 1

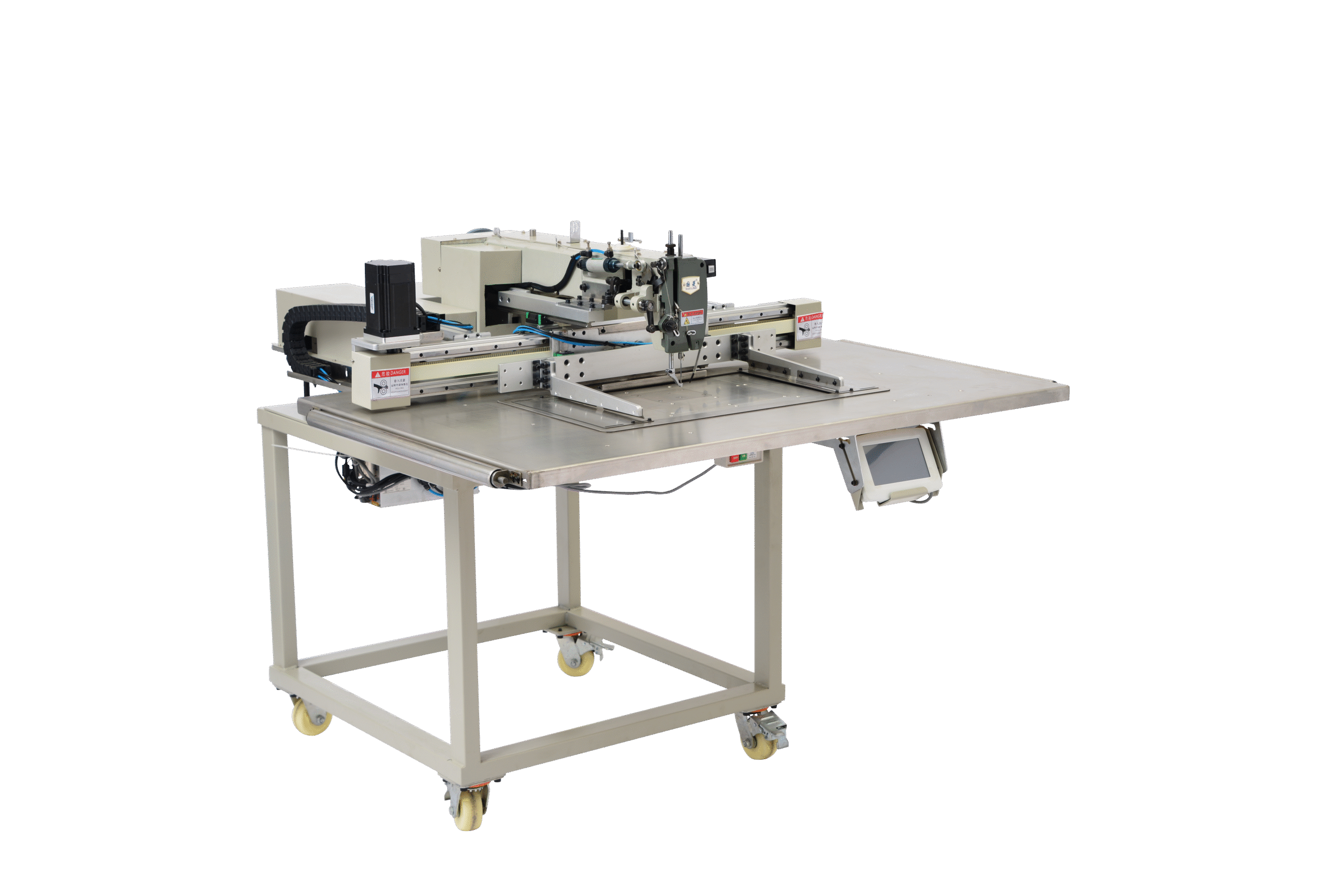

G-6040R Machine Image 2

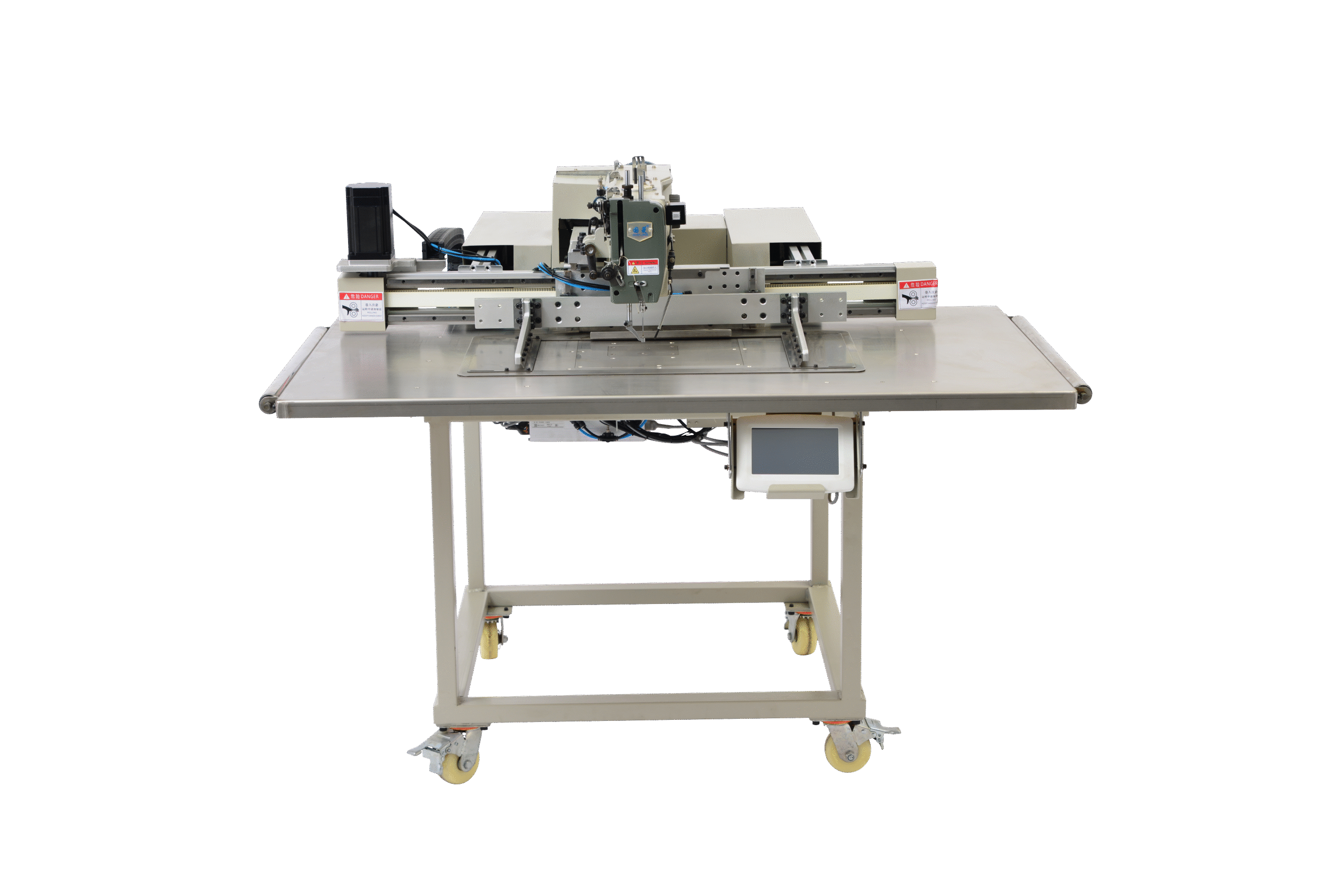

G-6040R Machine Image 3

Product Features

  • 750W direct-drive servo motor for powerful penetration and stability
  • 6-inch touchscreen LCD for easy pattern programming and selection
  • Automatic curved thread cutter for precise trimming
  • Adjustable stitch length from 0.1mm to 12.7mm
  • High sewing speed: up to 2700 stitches per minute (for stitch lengths below 3.0mm)
  • Optional double or triple shuttle hook for increased bobbin capacity
  • Capable of sewing up to 20,000 stitches per pattern
  • Pneumatic presser foot lifting for handling multiple layers of thick materials

Technical Specifications

Specification Detail
Sewing Range 60cm x 40cm
Sewing Speed Up to 2700 stitches/min
Sewing Thickness Super heavy materials
Needle Type DPx17 (#18-#26)
Stitch Length Adjustable from 0.1mm to 12.7mm
Motor 750W Direct-drive servo motor
Thread Trimming Automatic curved thread cutter
Maximum Number of Stitches Up to 20,000 stitches per pattern

Applications

  • Webbing sling manufacturing
  • Tie-down strap production
  • Heavy-duty industrial textile sewing

Purchase Information & Support

For purchasing or more information, visit our Support or contact our sales team: Phone: +86-199-6749-9462, Email: sales@js-sewing.com.
