In the lifting and rigging industry, the quality and strength of your slings directly determine safety, reputation, and profitability. Whether you are producing flat webbing slings, endless round slings, or FIBC lifting loops, choosing the right sewing machine is one of the most important decisions you will make when scaling or starting local production.

Many companies still rely on outdated manual or semi-automatic machines, only to discover later that they cannot keep up with quality standards, production volume, or labor costs. This guide will help you make an informed decision.

1. Understand Your Production Needs First

Before looking at any machine, ask yourself these critical questions:

• What is your target monthly output? (e.g., 3,000–10,000+ slings)
• What sling types and capacities do you plan to produce? (1–12 ton, 7:1 or 5:1 safety factor)
• What webbing widths and thicknesses will you use most often? (50–300 mm is the most common range)
• Do you need to sew reinforcement eyes, endless loops, or both?
• How important is automation and labor saving? (one operator managing multiple machines)

2. Key Technical Factors to Evaluate

A. Sewing Width & Infinite Length Capability For modern sling production, an infinite length sewing machine is almost essential. Traditional pattern sewing machines are limited to a fixed sewing area (e.g., 300×200 mm), while true infinite length machines can sew continuously along the entire length of the sling.

B. Sewing Thickness & Penetration Power Heavy-duty slings often require sewing 3–8 layers of high-strength webbing. Look for machines that can reliably handle 18–28 mm total thickness. This depends on:

• Servo motor power (2500W+ is ideal)
• Large rotary hook or heavy-duty swing shuttle
• Strong presser foot system

C. Rotary Hook vs Rock Shuttle (Swing Shuttle)

• Rotary Hook (Recommended): Larger thread capacity, smoother high-speed operation, and auto-stop when bottom thread is low. Best for high-volume production.
• Rock/Shuttle Hook: Better raw penetration on extremely thick or stiff materials, but no bottom thread detection and smaller bobbin capacity.

D. Automation Level Modern machines should offer:

• Automatic thread trimming
• Auto-stop for thread break or empty bobbin
• Programmable reinforcement patterns
• One-operator-multi-machine capability

E. Stitch Quality & Pattern Flexibility The machine should allow different stitch lengths for reinforcement zones and main seams, and support custom patterns for different tonnage and safety factors.

3. Recommended Machine Types for Different Production Scales

Entry Level (Small–Medium Production)

• GL-G3020R or similar 300×200 mm pattern sewing machine
• Suitable for small eyes and short reinforcement zones

Professional / High-Volume Production (Recommended)

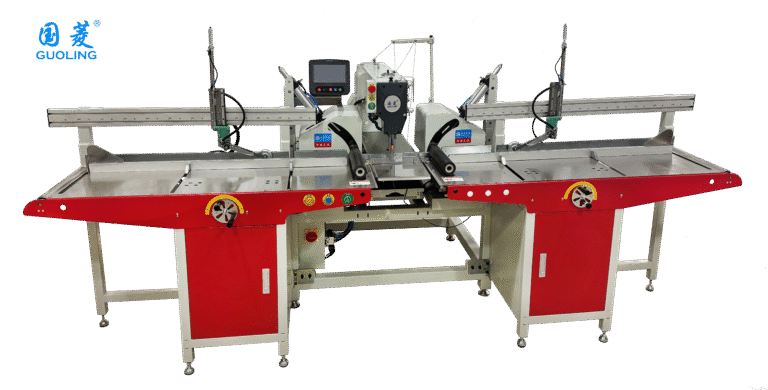

• GL-WX-300-12R Infinite Length Sling Sewing Machine (12-needle, rotary hook version)
  • Sewing width: 50–300 mm
  • Infinite length capability
  • Up to 28 mm thickness
  • Full servo + programmable patterns
  • One operator can manage 2–3 machines

Ultra-Heavy Duty (Very thick or special materials)

• Larger models with reinforced swing shuttle

4. Common Mistakes to Avoid

• Choosing a machine based only on price instead of long-term reliability and spare parts availability.
• Underestimating the importance of servo motors and large shuttles for thick webbing.
• Ignoring automation features that can reduce labor costs by 50–70%.
• Not planning for future expansion (start with a versatile machine that can grow with your business).

5. Total Cost of Ownership Considerations

Look beyond the initial purchase price. A good machine should offer:

• Low maintenance costs
• Easy availability of spare parts
• Strong technical support and training
• Energy efficiency
• Long service life (many of our machines are still running after 8–10 years)

Final Recommendation

For most companies moving into or expanding local production of lifting slings and FIBC components, the Guo Ling GL-WX-300-12R Infinite Length Sling Sewing Machine (rotary hook version) is currently the best balance of performance, versatility, automation, and return on investment.

It allows you to produce high-quality 1–12 ton slings efficiently while keeping labor costs low and maintaining consistent stitch strength.
